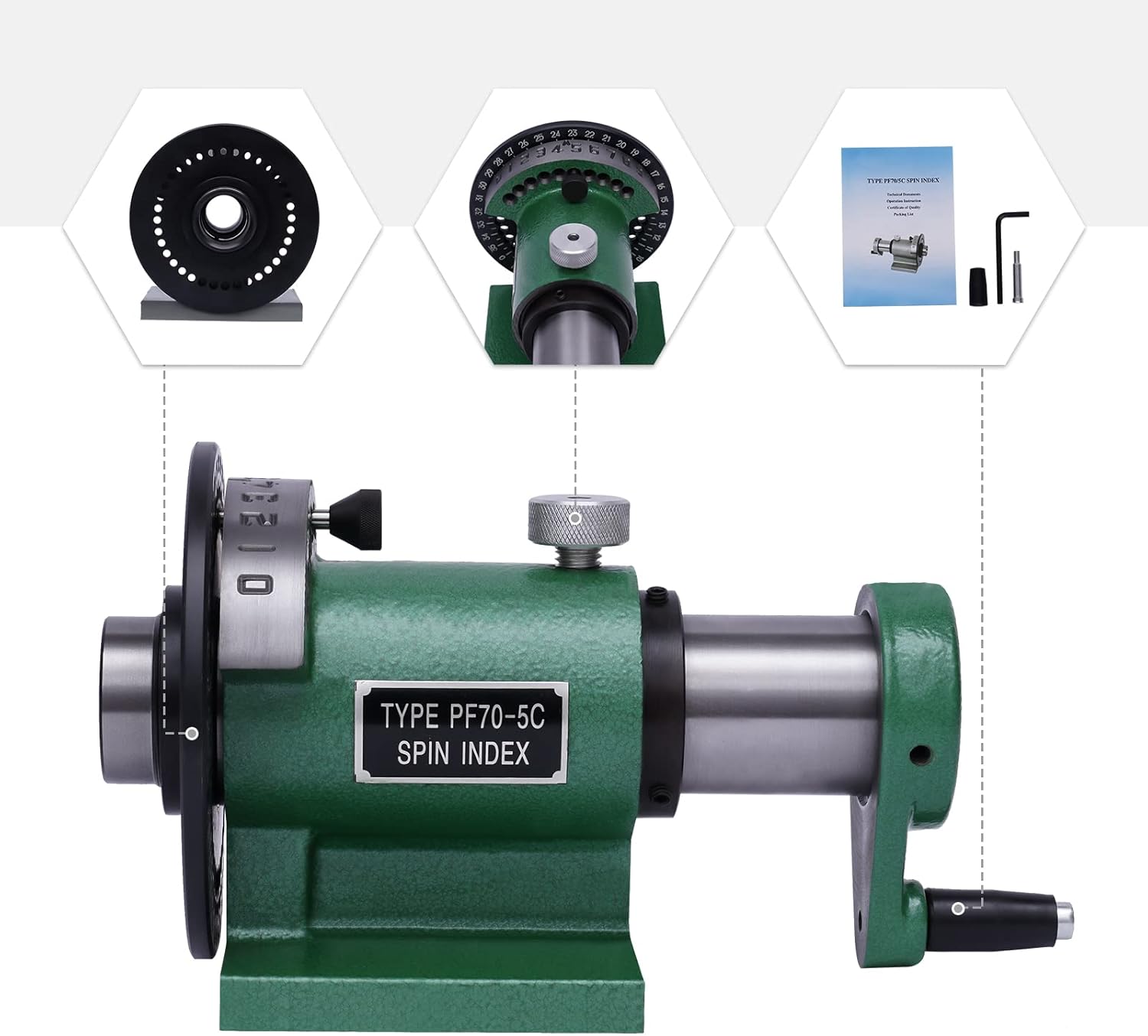

Spin Indexing Fixture, Precision Collet Spin Index Fixture PF70-5C Spin Index ± 4' Accuracy,Worktable Milling Spin Jig 1-1/8" Standard 5C Collet for Milling, Drilling, Fixture Boring

DescriptionThis spin indexing fixture is made of high-quality cast steel and is very strong and durable. It will help you to operate precisely and be your right-hand assistant for machining slots for milling cutters, cutting teeth for gears, curved milling slots, or drilling a bolt-hole circle around the circumference of a part.DetailsSmooth Surface: This spin indexing fixture is made of heavy-duty metal and finely polished, which shows a smooth surface. Therefore, it will not easily damage other materials and be easier to clean.Handle: This spin indexing fixture uses an ergonomic handle, so it becomes easier for you to grip.ApplicationIt is designed for milling, drilling, fixture boring and many common workshop applications.Specification Material: Cast SteelColor: GreenModule: PF70-5CIndexing Accuracy: ± 4'Capacity for Standard 5C Collet: 1-1/8"Height of Center: 70mm/2-3/4"Spindle Travel: 2-1/16"Spindle Cone Radial Runout: 0.010mm/0.0004"The Radial Center of the Spindle is Bouncing (25mm/0.98" From the Spindle End): 0.03mm/0.0012"The Parallelism of the Center Line of the Spindle to the Bottom Surface: 0.02mm, 0.0008''Product Size（L*H）: 23.6*13.4cm/9.29*5.28''Package Size: 22*14*14cm/8.66*5.51*5.51''Gross Weight: 5.8kg/12.79lbsPackage Included1*Spin Indexing Fixture1*English ManualAll Accessories for UseNotesPlease allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.

• Vertical and Horizontal Design: It has both vertical and horizontal functions. When the vertical position of the table is used with the tail section, it is possible to perform circumferential cutting, indexing drilling, milling and more complex work.
• Durable Casting Material: The cast steel spin indexing fixture has good casting properties such as milling vise, vibration damping properties and high heat resistance. Therefore, it is very strong and durable.
• High Precision: The spin indexing fixture is marked with a 360-degree scale on it, so you can accomplish precise rotation and reset.
• Powerful Clamping Force: This spin indexing fixture is controlled by a rotary screw. When you place the item inside and twist the screw tightly, it will hold the item firmly, making it easy for you to manipulate.
• Easy to Adjust: You just need to operate the control handle and adjust it to the desired position, which makes it easy and convenient to use.
